Trailer Options

Customize your Big Bend Trailer to fit your exact needs

These options are all standard on your Big Bend Trailer, when you are comparing prices to other manufacturers don't forget to see what is standard on their trailers and what these additional options will add to their base price!

Big Bend Trailer Options

Lengths from 16' - 40' and widths from 5' - 8'. Axles come in single, double or triple. We can also build a 6' wide trailer on 5' wide axles, a 6'8" wide trailer on a 6' wide axles and a 7' wide trailer on 6'8" wide axles (all of these will have a fender on the inside of the trailer).

Standard Features on Every Big Bend Trailer

▶Available in full top, half top, or bow top
▶All trailers less than 28' long will come with a receiver hitch on the back of your trailer so you can pull another trailer or chute behind you
▶Unique design for uncoupling of trailer latch from outside truck bed (no more climbing over & around the truck bed to unhook)
▶3' access gate on front passenger side of trailer
▶2 small swinging calf gates in the nose that can be locked
▶All center gates come with a sorting gate; center gates are supported when open or shut (not just bouncing up & down as you go over rough roads)
▶Rear butterfly gates can be slammed shut so heavy spring loaded pins on bottom of gate latch automatically into trailer frame (keeps you from getting the gates kicked back in your face). Rear gates can also be latched open to drag a critter into the trailer
▶On our 1/2 & 3/4 top trailers, the top rail has four lazy L's welded so a rope can be flipped over it to drag cattle into back of trailer
▶Exclusive non-rusting gap design on bottom for easy clean out
▶Wind resistant aerodynamic nose design makes trailer pull like it's not there
▶Bottom frame of trailer is built with 2 X 4 rectangle tubing and is much stronger than the normal gooseneck that uses angle-iron
▶Sides are built with solid steel and rectangle tubing so there are no places for water and manure to accumulate and rust out
▶Runners under floor are 2.5" X 2.5" square tubing welded solidly into the frame, no angle iron is used in the frame
▶7000 lb EZ lube rubber torsion axles
▶16" 10 ply (14 ply available) steel radial tires (load range E) with heavy duty 8 hole steel rims & lockable nose mounted spare
▶No exposed wires for brush country
▶All new orders come with LED lights and powder coated paint
▶Front bottom and front of brush fender is Rhino lined to prevent rocks from chipping paint

Available Options

Popular Add-Ons

▶Swing slider on center or rear gate
▶Access gate on drive side
▶3' tack room
▶4' high sides
▶Roller pin option for rough country where your trailer may drag bottom
▶Tool box that fits under the brush fender
▶Customization for hauling a 4 wheeler
▶Sheep & Goat Customization

Full Options List

Below is our complete list of available options organized by category. Contact us for pricing and availability.

Jump to Category

Common Options

▶Roller Pin on Back Bumper
▶4' High Sides (per foot of trailer length)
▶Toolbox (34"x20"x9")

Rear Gate Options

Butterfly are Standard, No Charge for a Solid Swing

▶Swing Slider Rear Gate
▶Solid Metal up Butterfly Rear Gates

Center Gate Options

▶Change Standard Center Gate to Butterfly
▶Make Standard Center Gate Taller
▶Extra Center Gate (Standard Height)
▶Extra Center Gate (Tall)
▶Swing Slider Center Gate
▶Floating Center Gate (Slides with position to pin every 16")
▶Floating Center Gate Replacing 2 Center Gates (Slides with position to pin every 16")
▶Sheet Metal Halfway Up Center Gate

Escape Gate Options

▶Wider (48") Escape Gate
▶Taller (5'8") Escape Gate
▶Taller (5'8") & Wider (48") Escape Gate
▶Taller (5'8") & Wider (54") Escape Gate
▶Extra Escape Gate

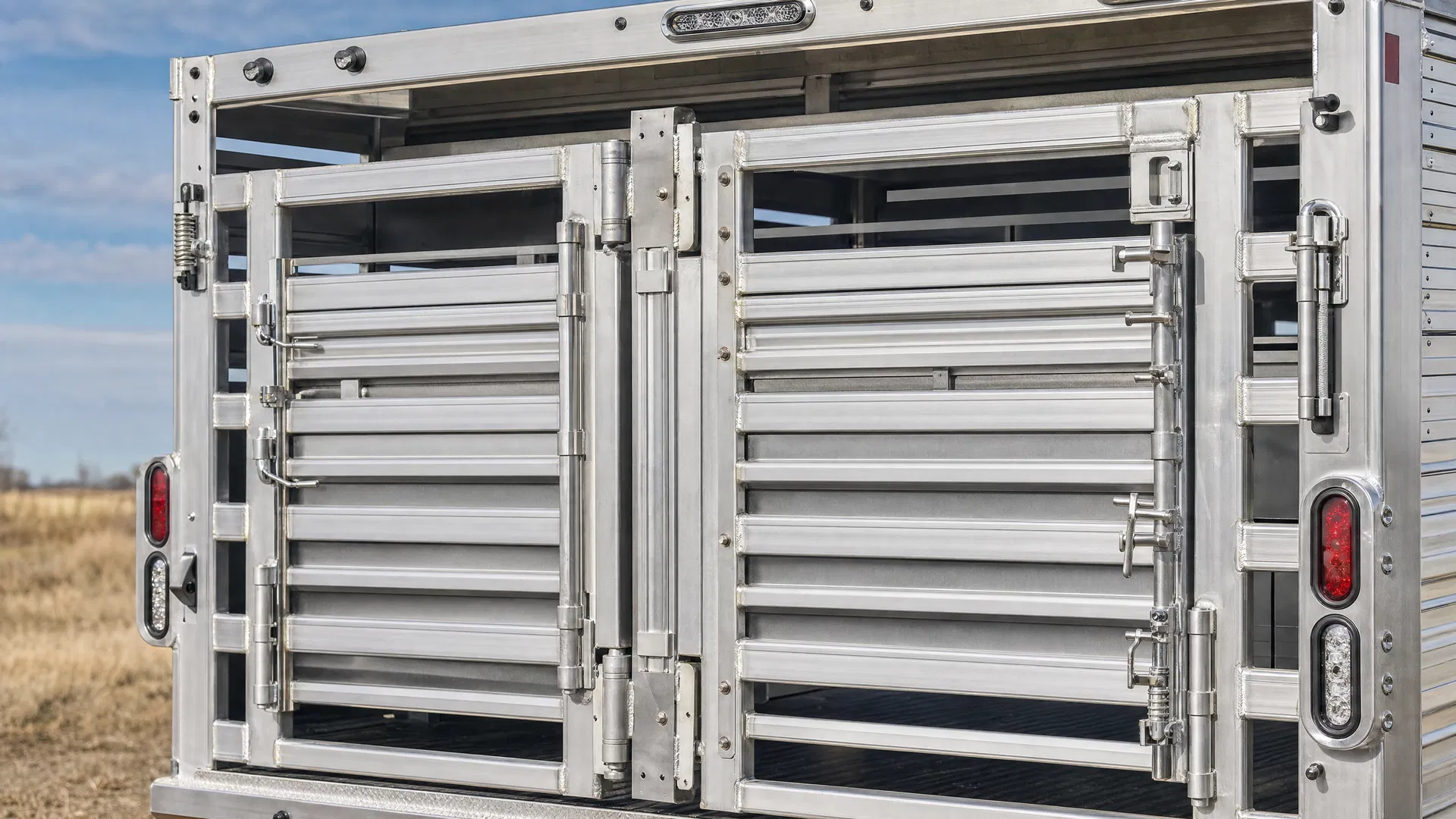

Heavy-duty trailer gate system with butterfly gates

Premium Gate Systems Built to Last

Tack Rooms & Saddle / Dog Boxes

Tack Rooms include brush trays on doors, bridle hooks and blanket bars

▶2' Walk in Tack w/ 3 Saddle Racks Mounted on Opposite Wall of Door
▶3' Walk in Tack w/ 3 Saddle Racks Mounted on Opposite Wall of Door
▶4' Walk in Tack w/ 3 Saddle Racks Mounted on Opposite Wall of Door
▶Slant Wall Walk In Tack (~2' DS, ~4' PS) w/ 3 Racks on DS
▶Slant Deluxe Tack (2 Doors, 3 Swing Out Saddle Racks Each Side)
▶4' Deluxe Tack Room (2 Doors, 3 Swing Out Saddle Racks Each Side)
▶6' Deluxe Tack (2 Doors, 3 Swing Out Saddle Racks Each Side)
▶Trainer Tack (1 door on DS, 2 Doors on PS w/ 6 saddle racks, windows on doors)

Saddle Boxes

Doors will have brush trays and bridle hooks

▶2' Saddle Box w/ 2 Saddle Racks, one door each side
▶2' Saddle Box w/ 4 Saddle Racks, one door each side
▶2' Saddle Box w/ 1 Split Door (separate door into nose on 1 side) w/ 2 Saddle Racks
▶2' Saddle Box w/ 2 Split Doors (separate door into nose on both sides) w/ 2 Saddle Racks
▶3' Saddle Box w/ 2 Saddle Racks (one door each side), blanket bars
▶3' Saddle Box w/ 1 Split Door (separate door into nose on 1 side) w/ 2 racks, blanket bars
▶3' Saddle Box w/ 2 Split Doors (separate door into nose on 2 sides) w/ 2 racks, blanket bars

Dog Box Combinations

▶2' Saddle/Dog Box w/ 3 Split Doors & vents on dog box Side, 2 on Other (2 Saddle Racks)
▶3' Tack Room on One Side (swing out racks) & Saddle/Dog Box Combo on Other
▶4' Tack Room on One Side (swing out racks) / 4 Dog Boxes w/ Vents on Other
▶4' Tack Room on One Side (swing out racks) / 6 Dog Boxes w/ Vents on Other
▶4' Tack Room on One Side (swing out racks) / 2 Stacked Dog Boxes w/ Man Door on Other

Tack & Saddle Box Accessories

▶Extra Tack Room Door
▶Individual Saddle Rack
▶Blanket Bars
▶Saddle Box Light (1 Each Side)
▶Swing Out Saddle Racks for Tack Room
▶8" Step for Tackroom Door
▶Flood Light (Each Light)
▶Round Twist Air Vent
▶Popup Air Vent

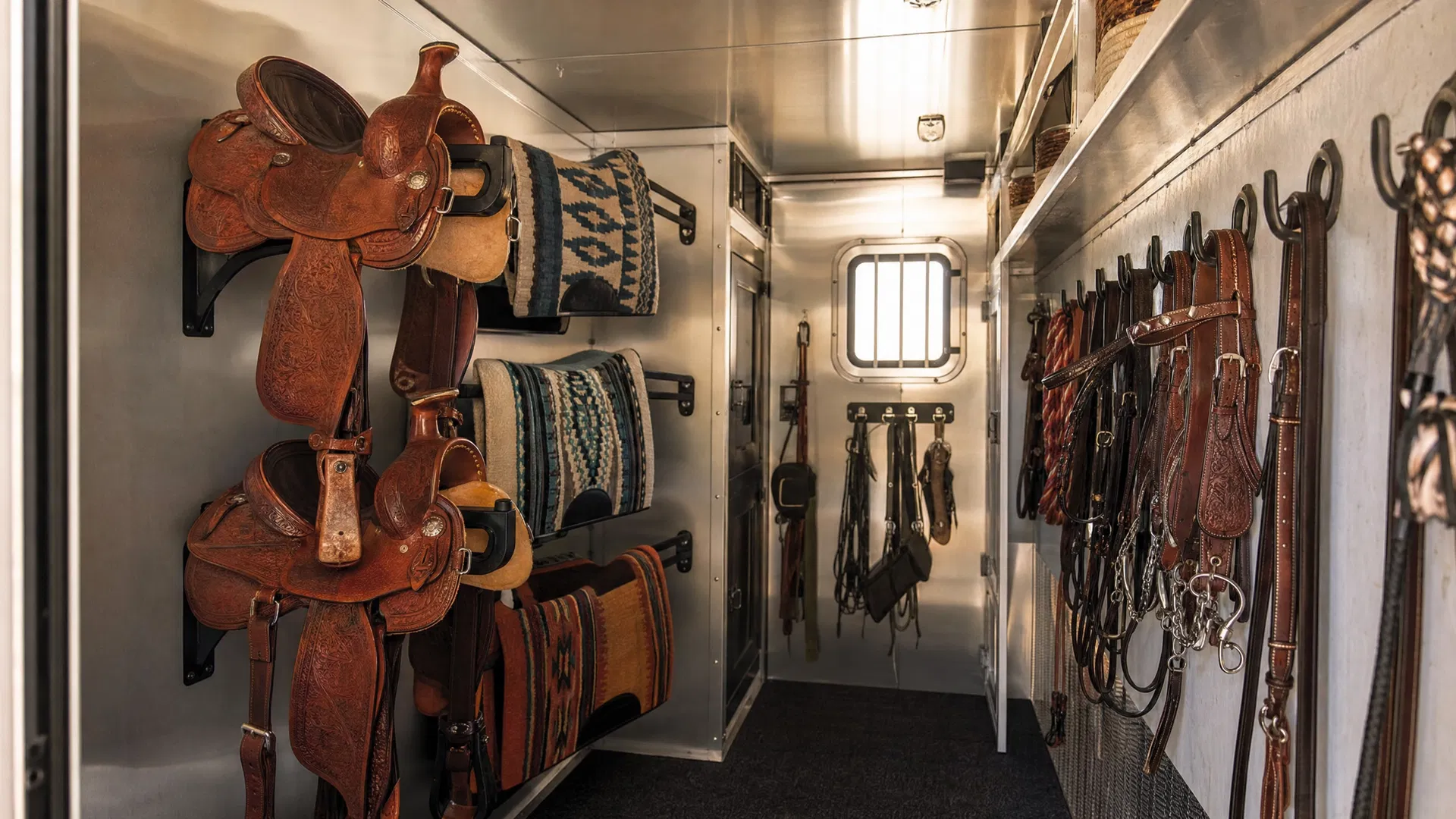

Organized tack room interior with saddle racks and bridle hooks

Fully Equipped Tack Rooms & Storage Solutions

Width & Height Options

▶7' Wide Trailer Per Foot of Trailer Length
▶7'6" Wide Trailer Per Foot of Trailer Length (Includes Fender On Inside)
▶7' Trailer Height Per Foot of Trailer Length

Double Deck

▶Double Deck Option (Per ft/ of Trailer (No Wood Decks)
▶Wood Decks for Double Deck Trailer (per foot of trailer)

Dog Options

▶4' Compartment Dog Proof
▶Split Nose w/ Expanded Metal (Plus 2 air vents behind spare)
▶Cage nose w/ Access Door on DS
▶Removable Floor in Saddle Box for Conversion to Dog Box

Custom Axles (Fender on Inside)

▶6' Wide Trailer w/ 1- 5' Wide Axle
▶6' Wide Trailer w/ 2- 5' Wide Axles
▶6'8" Wide Trailer w/ 2- 6' Wide Axles
▶6'8" Wide Trailer w/ 3- 6' Wide Axles

Upgraded Axle Options (Dexter Brand)

T Axles are the only axles Dexter recommends for a triple axle trailer

▶8K Single Axle (Replacing 1 7K Axle)
▶8K Double Axles (Replacing 2 7K Axles)
▶8K Double Axles (Replacing 3 7K T Axles w/ 14 Ply)
▶8K T Axle Triple Torsion Axles Replacing 3 7K T Axles
▶10K Double Torsion Axles (Replacing 2 7.2K Axles, Upgrade to 17.5" 18 Ply Tires, Add Fender Fab.)
▶10K Double Torsion Axles (Replacing 3 7K T Axles, Upgrade to 17.5" 18 Ply Tires, Add Fender Fab.)
▶10K Triple Torsion Axles (Replacing 3 8K T Axles, Upgrade to 17.5" 18 Ply Tires, Add Fender Fab)
▶12K Double Torsion Axles (Replacing 3 7K T Axles, Upgrade to 17.5" 18 Ply, Add Fender Fabrication)
▶12K Double Torsion Axles (Replacing 3 8K T Axles, Upgrade to 17.5" 18 Ply, Add Fender Fabrication)
▶Fender on Inside Due to Larger Axle (Single Axle Trailer)
▶Fender on Inside Due to Larger Axle (Double Axle Trailer)
▶Fender on Inside Due to Larger Axle (Triple Axle Trailer)

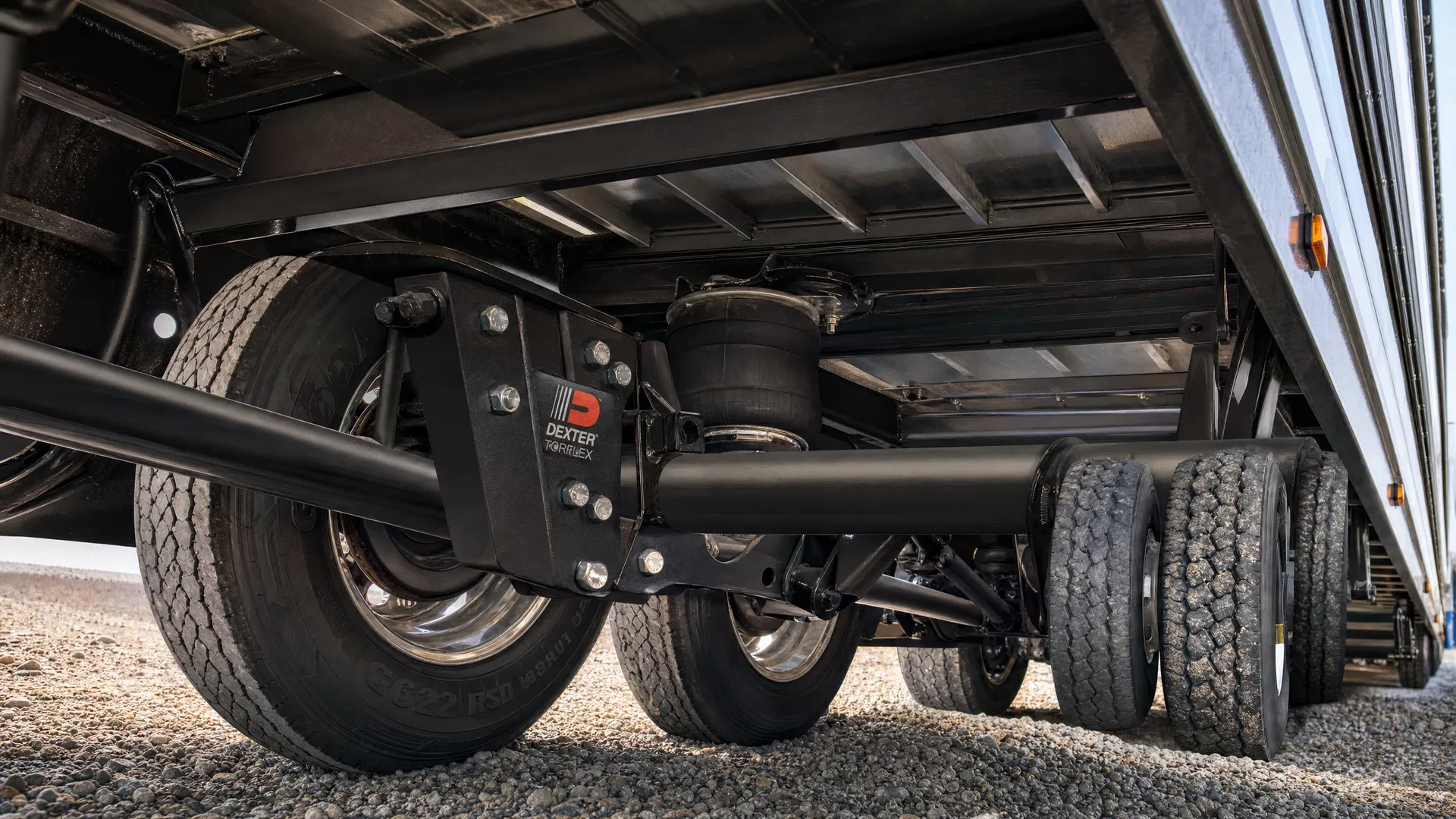

Heavy-duty Dexter axles and suspension system

Heavy-Duty Axles & Suspension for Any Load

Floor Options

▶Rubber Matting / Ft.
▶Cleated Rubber Boards, $/running Ft. (See Diagram)
▶Grooved Rubber Boards, $/running Ft. (See Diagram)
▶5' wide = 7 boards, 6' = 8 boards, 6'8" or 7" = 9 boards

Tire Options

All trailers now come standard with 14 ply tires

▶17.5" 18 Ply Upgrade / (Each) Tire (From 14 Ply)
▶Single Mounted 14 Ply Tire
▶Single Mounted 18 Ply 17.5" Tire
▶Spare Tire Rack on Fender
▶Spare Under Neck
▶Spare Tire Cover

Jack Options

▶Extra 20K Holland Jack (Mounted on trailer, includes cross pipe)
▶Hydraulic Jack (10K)
▶Dual Hydraulic Jacks
▶Electric Jack (12K Velocity 12V, Hi Speed Cequent)
▶24K 2 Speed Jack (12K Capacity Each)
▶50K 2-Speed Jack Set (25k Capacity Each)

Other Options

▶Load Lights on Back (2 Clear Strip Lights on Either Side of Brake Light, Separate Switch)
▶Extra Clearance/Marker Lights (Includes 1 Each Side)
▶Flood Light (Each)
▶Reverse Lights
▶Extra Bed Liner (Per Square Ft.)
▶Plexi Glass per Running Foot (on trailer w/ 4' sides, includes both sides)
▶Canvas Tarp for Roof (Per Running ft.)
▶Ramp for Back Bumper (ATV or Dragging - Mounts Under Trailer)
▶Electric Hydraulic Brake Option
▶Panel Hangers (per side)
▶D Ring to Tie Horses or Dogs
▶Rope Rollers (4)
▶Static Rope Pulls (4)
▶Add Calf Gates (in trailers with tack rooms)
▶Solid Calf Gates
▶Solar Panel
▶7 Way Plug Installed at Back of Trailer
